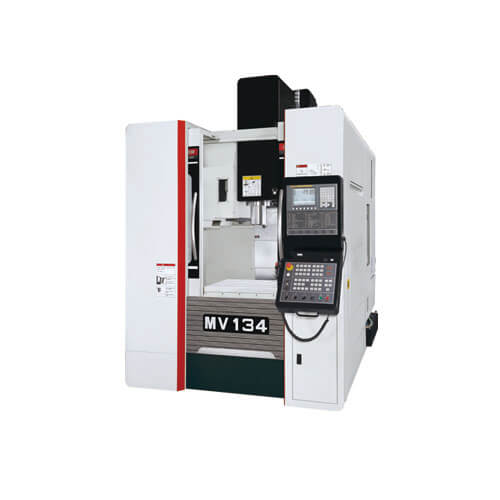

MV-134
| Technical Data | MV 134C | MV 134E | MV 134P |
Work range
| |||
|---|---|---|---|
| Table size (mm) | 940 x 550 | 940 x 550 | 940 x 550 |
| Travel X (mm) | 661 | 661 | 661 |
| Travel Y (mm) | 572 | 572 | 572 |
| Travel Z (mm) | 560 | 560 | 560 |
| Table load capacity (kg) | 500 | 500 | 500 |
| Main Spindle | |||
| Spindle taper | 40 taper | 40 taper | 40 taper |
| Max. spindle speed | 40 taper | 40 taper | 40 taper |
| Tool changer | |||
| Magazine positions | 30 (std.) | 30 (std.) 48 / 60(opt.) | 30 (std.) 48 / 60(opt.) |
| Max. tool diameter (mm) | 76.2 | 76.2 | 76.2 |
| Max. tool dia. Due to neighbor pots are empty (mm) | 150 | 150 | 150 |
| Max. tool length (mm) | 300 | 300 | 300 |

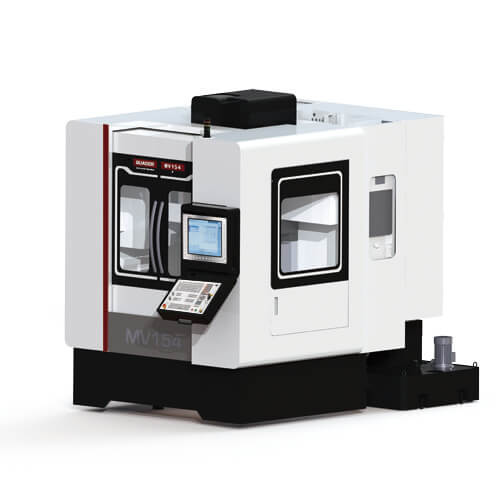

MV-154
| Technical Data | MV 154C | MV 154E | MV 154P | MV 154M |
Work range
| ||||
|---|---|---|---|---|
| Table size (mm) | 900 x 500 | 900 x 500 | 900 x 500 | 900 x 500 |
| Travel X (mm) | 762 | 762 | 762 | 700 |
| Travel Y (mm) | 530 | 530 | 530 | 530 |
| Travel Z (mm) | 560 | 560 | 560 | 560 |
| Table load capacity (kg) | 500 | 500 | 500 | 500 |
| Main Spindle | ||||
| Spindle taper | 40 taper | 40 taper | 40 taper | 40 taper |
| Max. spindle speed | 10K~12K | 9K ~ 12K | 9K ~ 20K | 15K ~ 20K |
| Tool changer | ||||
| Magazine positions | 30 (std.) | 30 (std.) 48 / 60(opt.) | 30 (std.) 48 / 60(opt.) | 30 (std.) 48 / 60(opt.) |
| Max. tool diameter (mm) | 76.2 | 76.2 | 76.2 | 76.2 |
| Max. tool dia. Due to neighbor pots are empty (mm) | 125 | 125 | 125 | 125 |
| Max. tool length (mm) | 280 | 280 | 280 | 280 |

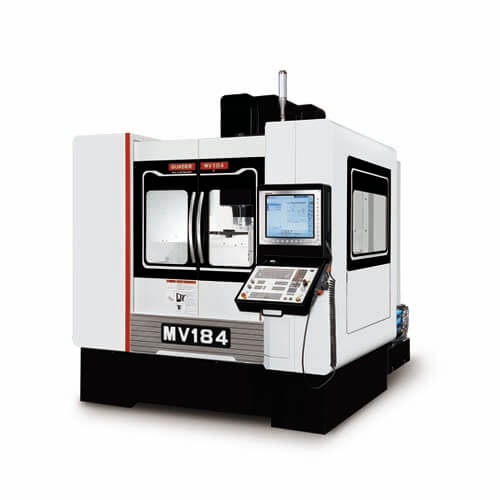

MV-184
| Technical Data | MV 184M | MV 184D | MV 184P | MV 184E | MV 184C |
| Work range
| |||||
|---|---|---|---|---|---|
| Table size (mm) | 1,200 x 600 | 1,200 x 600 | 1,200 x 600 | 1,200 x 600 | 1,200 x 600 |
| Travel X (mm) | 900 | 1020 | 1020 | 1020 | 1020 |
| Travel Y (mm) | 610 | 610 | 610 | 610 | 610 |
| Travel Z (mm) | 610 | 610 | 610 | 610 | 610 |
| Table load capacity (kg) | 500 | 500 | 500 | 500 | 500 |
| Main Spindle | |||||
| Spindle taper | 40 taper | 40 taper | 40 taper | 40 taper | 40 taper |
| Max. spindle speed | 15K ~ 20K | 12K ~ 20K | 9K ~ 20K | 9K ~ 12K | 12K |
| Tool changer | |||||
| Magazine positions | 30(std.) 48/60(opt.) | 30 (std.) 48 / 60(opt.) | 30 (std.) 48 / 60(opt.) | 30 (std.) 48 / 60(opt.) | 30 |
| Max. tool diameter (mm) | 76.2 | 76.2 | 76.2 | 76.2 | 76.2 |
| Max. tool dia. Due to neighbor pots are empty (mm) | 125 | 125 | 125 | 125 | 125 |
| Max. tool length (mm) | 280 | 280 | 280 | 280 | 280 |
