CNC Machining Center
Home
Products
CNC EDM Superdrill
SD-Series

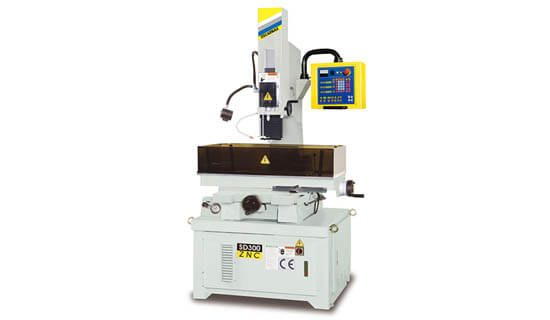

SD300
Unit
Specifications
Work Table (LxW)
mm
460 x 210
Table travel (X)
300
Table travel (Y)
200
Servo travel
345
Electrode Guide Travel (Z-axis Travel Included)
250
Distance between Platen & Table
270-20
Working Fluid and Capacity
L
45L
Max. Workpiece Weight
kgs
250
Machine Weight (net)
1000
Power Source
V
220/380
415/440
Max. Power Consumption
KVA
4.5
Max. Machining Current
A
50
S325
Unit
Specifications
Work Tank (LxWxH)
mm
860 x 530 x 350
Work Table (LxW)
650 x 350
Table travel (X)
300
Table travel (Y)
250
Servo Travel
300
Distance Between Spindle to Work Table
270-570
Max. Electrode Weight
kgs
120
Max. Workpiece Weight
550
Dimensions
mm
2700
2300
2100
Weight
kgs
1150

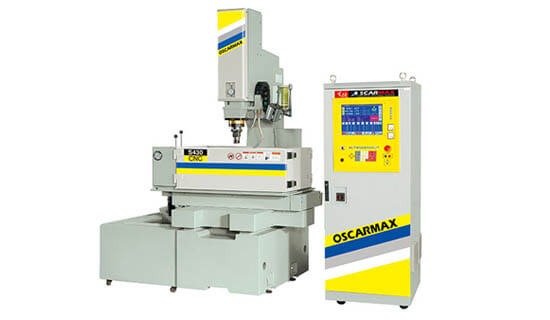

S430
Unit
Specifications
Work Tank (LxWxH)
mm
990 x 565 x 380
Work Table (LxW)
650 x 350
Table travel (X)
400
Table travel (Y)
300
Servo Travel
300
Distance Between Spindle to Work Table
270-570
Max. Electrode Weight
kgs
120
Max. Workpiece Weight
550
Dimensions
mm
3100
2500
2350
Weight
kgs
1200
S550
Unit
Specifications
Work Tank (LxWxH)
mm
1170 x 690 x 425
Work Table (LxW)
800 x 450
Table travel (X)
500
Table travel (Y)
400
Servo Travel
350
Distance Between Spindle to Work Table
275-675
Max. Electrode Weight
kgs
220
Max. Workpiece Weight
1350
Dimensions
mm
4000
2650
2300
Weight
kgs
1950
