Conventional Lathe
430-Series

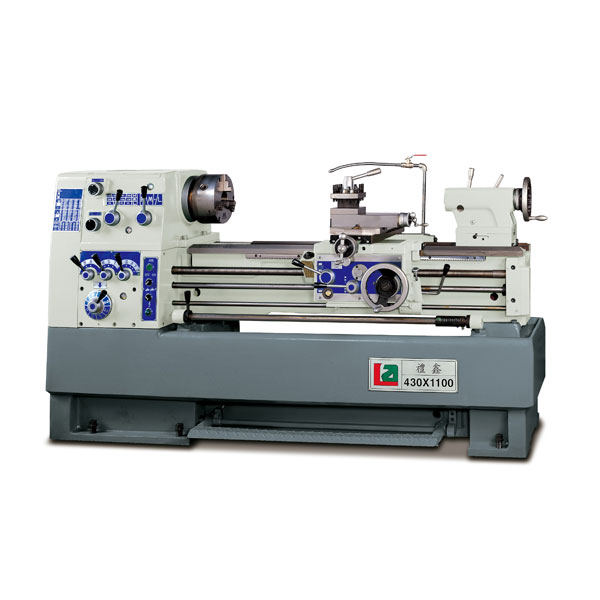

LA430X1100
Capacity
Width of bed
300 (12”) mm
Total travel of top slide
120 (4 3/4”) mm
Swing over bed
Ø432 (17”) mm
Swing over cross slide
Ø272 (10 3/4”)mm
Swing in gap
Ø610 (24”) mm
Gap width in front of face plate
150 (5 7/8”) mm
Height of center from leg bottom
1080 (42 3/8”) mm
Distance between centers
550 (21.65”) / 800(32") / 1100 (44") /1700 (67") / 2000(78.74")
Headstock
Number of spindle speeds
12 steps
Spindle bore
Ø58 (2 1/4”) mm
Type of spindle nose
ASA-A1-6 D1-6
Taper of spindle bore& center
MT. NO. 6 x No. 4
Range of spindle speeds
35,52,75,110,160,230,330,490,650,950,1350,2000
Thread & Feed
Lead screw diameter and pitch
35(1 1/8”) 4TPI or pitch 6mm
Range of inch threads
2~72(44 changes)
Range of metric threads
6mm: 0.2~14 (39)changes
Number feeds
36 steps
Range of longitudinal feeds
0.03~0.85mm(0.0012”~0.034”)
Range of cross feeds
1/2 of longitudinal feeds
Tailstock
Tailstock quill diameter
Ø60(2 3/8”)
Total travel of tailstock quill
150(6”)
Taper in tailstock quill
No. 4
Motors
Spindle drive motor
5 HP/ 7.5HP(opt.)
Coolant pump motor
1/8
