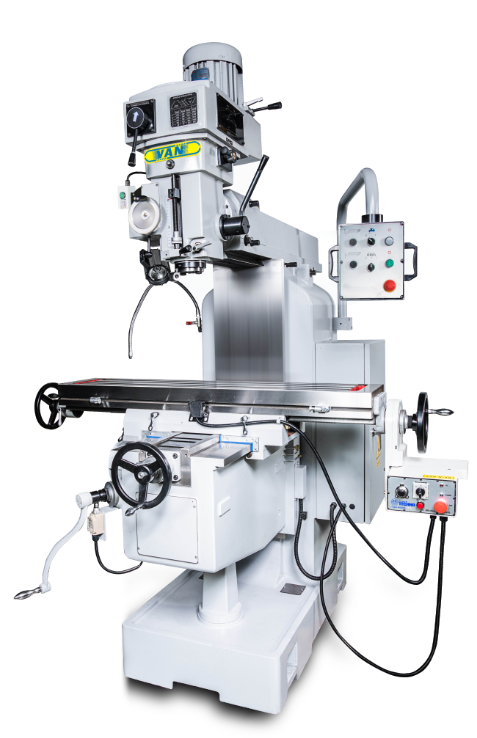

YSM 20A
| Model | Unit |
YSM-20AS |
YSM-20AC |
||
|---|---|---|---|---|---|
| Travel | |||||
| Longitudinal travel (M./A.) | mm |
670(26.38") |
|||
| Cross travel (M./A.) | mm |
440(17.32") |
|||
| Vertical travel (M./A.) | mm |
460(18.11") |
|||
| Slideway X/Y/Z | type |
△ / □ / □ |
|||
| Quill travel | mm |
140(5.51") |
|||
| Overarm travel | mm |
570(22.44") |
|||
| Overarm swivel | degree |
Fixed |
|||
| Quill swivel (R&L) | degree |
±45 |
|||
| Quill swivel (F&B) | degree |
Fixed |
|||
| Dist. from spindle nose to table | mm |
100-560(3.94"-22.05") |
|||
| spindle centerline to column | mm |
185-755(7.28"-29.72") |
|||
| Table | |||||
| Dimension | mm |
1270x254(50"x10") |
|||
| T-slots (Width x No. x Pitch) | mm |
16x3x63(0.63"x3x2.48") |
|||
| Max. table load | kg |
250 |
|||
| Spindle | |||||
| Milling head | type |
10 Steps |
Inverter |
||
| Speed | 60Hz | rpm |
75-3500 |
55-3600 |
|
| 50Hz | rpm |
60-2870 |
|||
| Vertical feeds | mm/rev |
0.04/0.08/0.15 |
|||
| Taper | type |
NT 40 |
|||
| Quill Diameter | mm |
110 |
|||
| Motor | |||||
| Main spindle | HP |
5 |
|||
| Z-axis elevation | HP |
1 |
|||
| Feedrate | |||||
| Z-axis speed | mm/min |
1150(45.27") |
|||
| Machine | |||||
| Space(L x W x H) | mm |
2250x2440x2420(89"x96"x95") |
|||
| Packing dimension(L x W x H) | mm |
1770x1870x2040(70"x74"x81") |
|||
| Net Weight | kg |
1750 |
|||
| Gross Weight | kg |
1900 |
|||

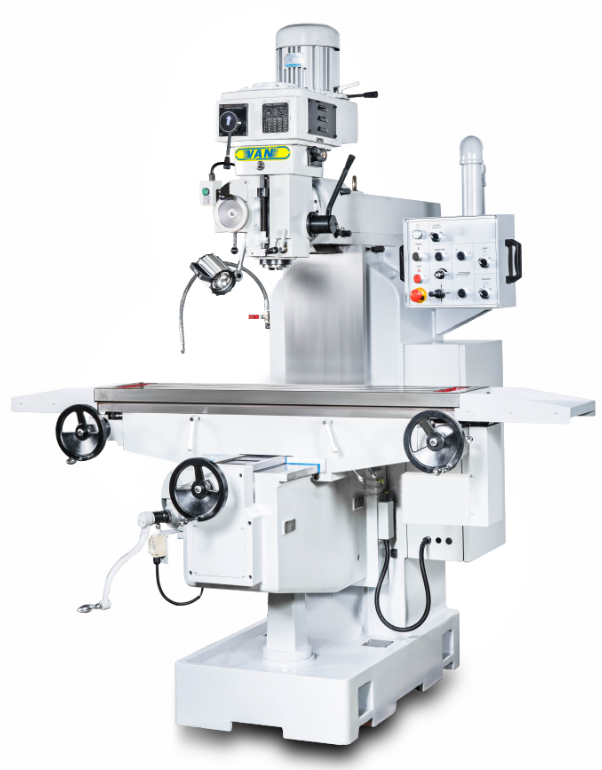

YSM 20B
| Model | Unit |
YSM-20BS |
YSM-20BC |
||
|---|---|---|---|---|---|
| Travel | |||||
| Longitudinal travel (M./A.) | mm |
1000(39.37") |
|||
| Cross travel (M./A.) | mm |
420(16.53") |
|||
| Vertical travel (M./A.) | mm |
400(15.75") |
|||
| Slideway X/Y/Z | type |
△ / □ / □ |
|||
| Quill travel | mm |
140(5.51") |
|||
| Overarm travel | mm |
570(22.44") |
|||
| Overarm swivel | degree |
Fixed |
|||
| Quill swivel (R&L) | degree |
±45 |
|||
| Quill swivel (F&B) | degree |
Fixed |
|||
| Dist. from spindle nose to table | mm |
100-500(3.94"-19.68") |
|||
| spindle centerline to column | mm |
185-755(7.28"-29.72") |
|||
| Table | |||||
| Dimension | mm |
1370x300(54"x12") |
|||
| T-slots (Width x No. x Pitch) | mm |
16x3x70(0.63"x3x2.75") |
|||
| Max. table load | kg |
300 |
|||
| Spindle | |||||
| Milling head | type |
10 Steps |
Inverter |
||
| Speed | 60Hz | rpm |
75-3500 |
55-3600 |
|
| 50Hz | rpm |
60-2870 |
|||
| Vertical feeds | mm/rev |
0.04/0.08/0.15 |
|||
| Taper | type |
NT 40 |
|||
| Quill Diameter | mm |
110 |
|||
| Motor | |||||
| Main spindle | HP |
5 |
|||
| X-axis traverse | HP |
1 |
|||
| Y-axis traverse | HP |
1 |
|||
| Z-axis elevation | HP |
1 |
|||
| Feedrate | |||||
| X-axis speed | mm/min |
0-1800(0-70.86") |
|||
| Y-axis speed | mm/min |
0-1800(0-70.86") |
|||
| Z-axis speed | mm/min |
1150(45.27") |
|||
| Machine | |||||
| Space(L x W x H) | mm |
2250x3100x2420(89"x97"x95") |
|||
| Packing dimension(L x W x H) | mm |
1770x2200x2040(70"x87"x81") |
|||
| Net Weight | kg |
2000 |
|||
| Gross Weight | kg |
2200 |
|||

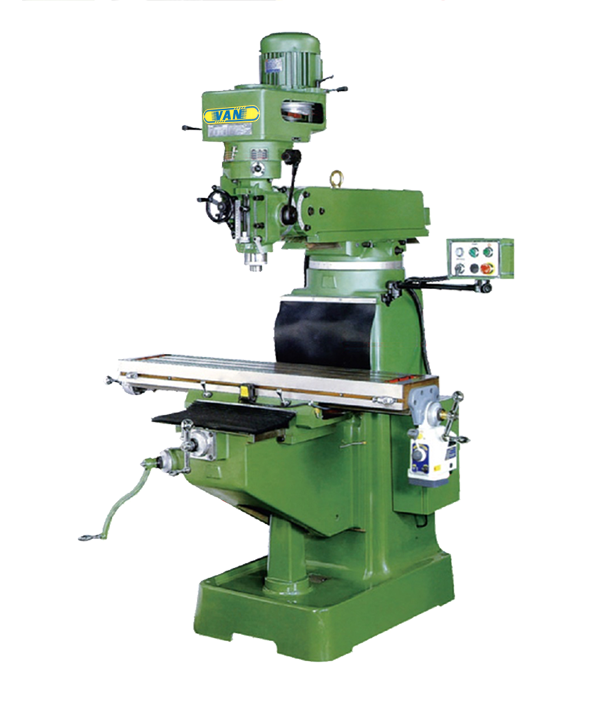

YSM-16 Series
| Model | Unit |
YSM-16VS |
YSM-16SS |
YSM-16VC |
|
|---|---|---|---|---|---|
| Travel | |||||
| Longitudinal travel (M./A.) | mm |
850/750(33.46"/29.53") |
|||
| Cross travel (M./A.) | mm |
426(16.77") |
|||
| Vertical travel (M./A.) | mm |
400(15.74") |
|||
| Slideway X/Y/Z | type |
△ / □ / △ |
|||
| Quill travel | mm |
127(5") |
|||
| Overarm travel | mm |
560(22") |
|||
| Overarm swivel | degree |
360 |
|||
| Quill swivel (R&L) | degree |
±45 |
|||
| Quill swivel (F&B) | degree |
±45 |
|||
| Dist. from spindle nose to table | mm |
50-450(1.96"-17.7") |
|||
| spindle centerline to column | mm |
60-620(2.36"-24.4") |
|||
| Table | |||||
| Dimension | mm |
1270x254(50"x10") |
|||
| T-slots (Width x No. x Pitch) | mm |
16x3x63(0.63"x3x2.48") |
|||
| Max. table load | kg |
250 |
|||
| Spindle | |||||
| Milling head | type |
Variable |
8/16 Steps |
Inverter |
|
| Speed | 60Hz | rpm |
50-3500 |
66-2700(8) |
55-3600 |
| 50Hz | rpm |
68-2280(8) |
|||
rpm |
68-4560(16) |
||||
| Vertical feeds | mm |
0.04/0.08/0.15 |
|||
| Taper | type |
NT 30 or R8(Opt.NT40) |
|||
| Motor | |||||
| Main spindle | HP |
3 |
5 |
||
| Machine | |||||
| Space(L x W x H) | mm |
2120x2550x2320(83"x100"x91") |
|||
| Packing dimension(L x W x H) | mm |
1660x1800x1910(66"x71"x76") |
|||
| Net Weight | kg |
1100 |
|||
| Gross Weight | kg |
1250 |
|||

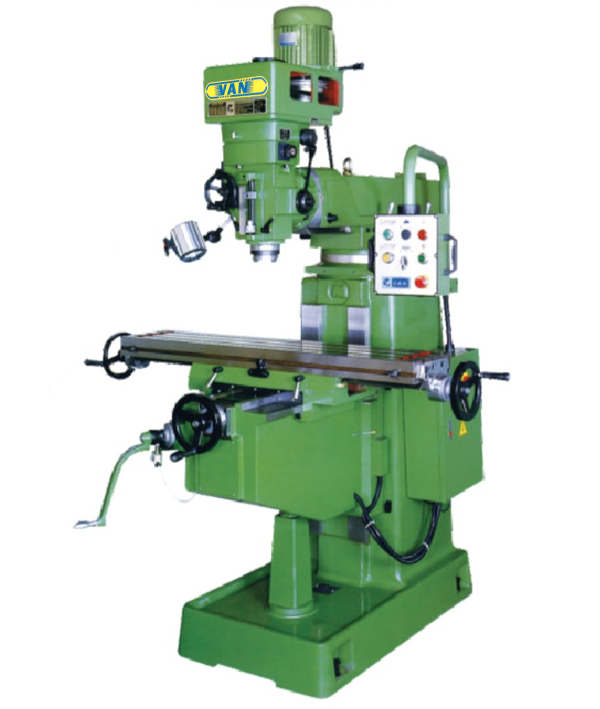

YSM-18 Series
| Model | Unit |
YSM-18VS |
YSM-18SS |
YSM-18VC |
|
|---|---|---|---|---|---|
| Travel | |||||
| Longitudinal travel (M./A.) | mm |
800/700(31.5"/27.56") |
|||
| Cross travel (M./A.) | mm |
426(16.77") |
|||
| Vertical travel (M./A.) | mm |
470(18.5") |
|||
| Slideway X/Y/Z | mm |
△ / □ / □ |
|||
| Quill travel | mm |
140(5.51") |
|||
| Overarm travel | mm |
540(21.26") |
|||
| Overarm swivel | degree |
360 |
|||
| Quill swivel (R&L) | degree |
±45 |
|||
| Quill swivel (F&B) | degree |
Fixed(Opt.±45) |
|||
| Dist. from spindle nose to table | mm |
90-560(3.54"-22.05") |
|||
| spindle centerline to column | mm |
85-625(3.34"-24.6") |
|||
| Table | |||||
| Dimension | mm |
1270x254(50"x10") |
|||
| T-slots (Width x No. x Pitch) | mm |
16x3x63(0.63"x3x2.48") |
|||
| Max. table load | kg |
250 |
|||
| Spindle | |||||
| Milling head | type |
Variable |
10/20 Steps |
Inverter |
|
| Speed | 60Hz | rpm |
50-3500 |
70-3350 |
55-3600 |
| 50Hz | rpm |
58-2780 |
|||
rpm |
58-5560 |
||||
| Vertical feeds | mm |
0.04/0.08/0.15 |
|||
| Taper | type |
NT 40 |
|||
| Quill Diameter | mm |
105 |
|||
| Motor | |||||
| Main spindle | HP |
5 |
|||
| Z-axis elevation | HP |
1/2 |
|||
| Feedrate | |||||
| Z-axis speed | mm |
345(13.58") |
|||
| Machine | |||||
| Space(L x W x H) | mm |
1920x2530x2420(76"x100"x96") |
|||
| Packing dimension(L x W x H) | mm |
1620x1830x1960(64"x73"x78") |
|||
| Net Weight | kg |
1500 |
|||
| Gross Weight | kg |
1650 |
|||
