CNC Machining Center
Home
Products
CNC Machining Center
CV-Series

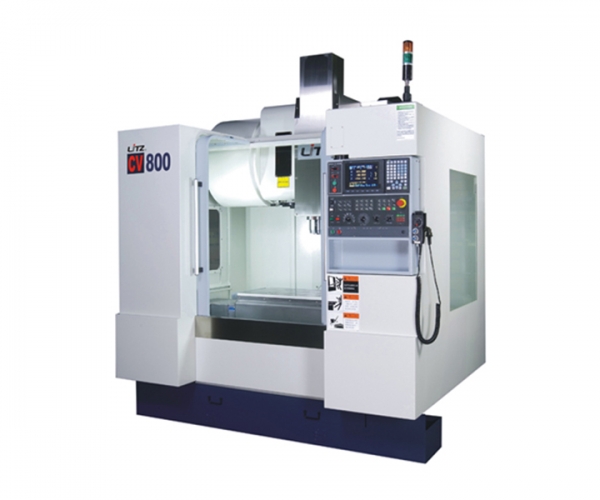

CV-800
Travel For 3-Axes
X-Axis Travel
mm
800
Y-Axis Travel
mm
500
Z-Axis Travel
mm
540
Spindle Nose To Workable Surface
mm
150-690
Spindle
Spindle Speed
rpm
8000
Automatic Tool Changing System
Number of Tools
one of a pair
24
Max. Tool Diameter
mm
80/125
Max. Tool Length
mm
270
Max. Tool Weight
kg
8
Tool Changing Method
Arm
Tool Specifications
BT-40
Motor
Spindle Motor (Continuous/30min. Rated)
kw (HP)
7.5/11 (11/15)
Motors On X/Y/Z-Axis
kw
2.0/2.0/3.5
Worktable
Worktable Area
mm
910x500
Worktable Max. Load Capacity
kg
500
T-Slot (Number X Width X Distance From The Center)
mm
5x18x100
Rapid Speed
X-Axis Rapid Speed
M/min
36
Y-Axis Rapid Speed
M/min
36
Z-Axis Rapid Speed
M/min
24
Cutting Feed Rate
mm/min
1-20000
Controller
Mitsubishi
M80

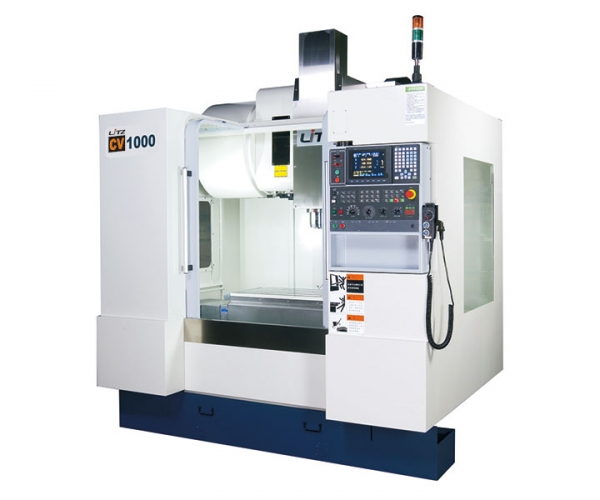

CV-1000A
Travel For 3-Axes
X-Axis Travel
mm
1020
Y-Axis Travel
mm
560
Z-Axis Travel
mm
600
Spindle Nose To Workable Surface
mm
120 - 720
Spindle
Spindle Speed
rpm
8000
Automatic Tool Changing System
Number of Tools
one of a pair
24
Max. Tool Diameter
mm
80/125
Max. Tool Length
mm
300
Max. Tool Weight
kg
8
Tool Changing Method
Arm
Tool Specifications
BT-40
Motor
Spindle Motor (Continuous/30min. Rated)
kw ( HP )
7.5 / 11 ( 10 / 15 )
Motors On X/Y/Z-Axis
kw
2.0 / 2.0 / 3.5
Worktable
Worktable Area
mm
1000 x 560
Worktable Max. Load Capacity
kg
750
T-Slot (Number X Width X Distance From The Center)
mm
5 x 18 x 100
Rapid Speed
X-Axis Rapid Speed
m / min
36
Y-Axis Rapid Speed
m / min
36
Z-Axis Rapid Speed
m / min
24
Cutting Feed Rate
mm / min
1-20000
Controller
Mitsubishi
M80

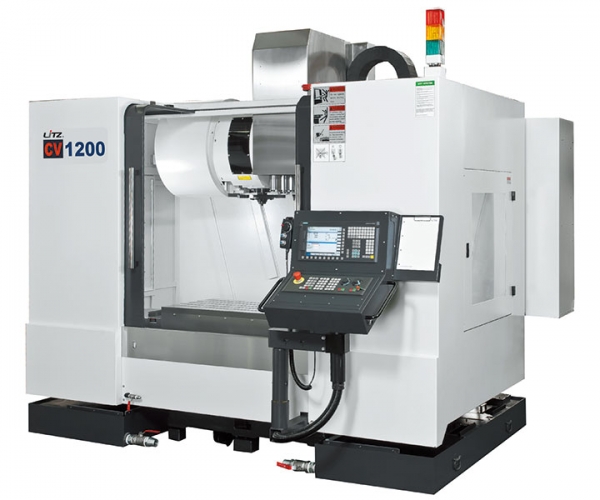

CV-1200A
Travel For 3-Axes
X-Axis Travel
mm
1200
Y-Axis Travel
mm
600
Z-Axis Travel
mm
675
Spindle Nose To Workable Surface
mm
100 - 775
Spindle
Spindle Speed
rpm
8000
Automatic Tool Changing System
Number of Tools
one of a pair
24
Max. Tool Diameter
mm
80/125
Max. Tool Length
mm
300
Max. Tool Weight
kg
7
Tool Changing Method
Arm
Tool Specifications
BT-40
Motor
Spindle Motor (Continuous/30min. Rated)
kw ( HP )
11 / 15 ( 15 / 20 )
X / Y / Z Motors On X/Y/Z-Axis
kw
2.0 / 2.0 / 3.5
Worktable
Worktable Area
mm
1220 x 620
Worktable Max. Load Capacity
kg
1000
T-Slot (Number X Width X Distance From The Center)
mm
5 x 18 x 100
Rapid Speed
X-Axis Rapid Speed
M / min
24
Y-Axis Rapid Speed
M / min
24
Z-Axis Rapid Speed
M / min
18
Cutting Feed Rate
mm / min
1 - 20000
Controller
Mitsubishi
M80
CV-1600
Travel For 3-Axes
X-Axis Travel
mm
1600
Y-Axis Travel
mm
900
Z-Axis Travel
mm
800
Spindle Nose To Workable Surface
mm
100 - 900
Spindle
Spindle Speed
rpm
6000
Automatic Tool Changing System
Number of Tools
one of a pair
24
Max. Tool Diameter
mm
125/225
Max. Tool Length
mm
350
Max. Tool Weight
kg
15
Tool Changing Method
Arm
Tool Specifications
BT-50
Motor
Spindle Motor (Continuous/30min. Rated)
kw ( HP )
15 / 18.5 ( 20 / 25 )
Motors On X/Y/Z-Axis
kw
3.5 / 3.5 / 3.5
Worktable
Worktable Area
mm
1700 x 850
Worktable Max. Load Capacity
kg
2000
T-Slot (Number X Width X Distance From The Center)
mm
7 x 18 x 100
Rapid Speed
X-Axis Rapid Speed
M/min
20
Y-Axis Rapid Speed
M/min
20
Z-Axis Rapid Speed
M/min
Box Way:15
Cutting Feed Rate
mm/min
1 - 8000
Controller
Mitsubishi
M80

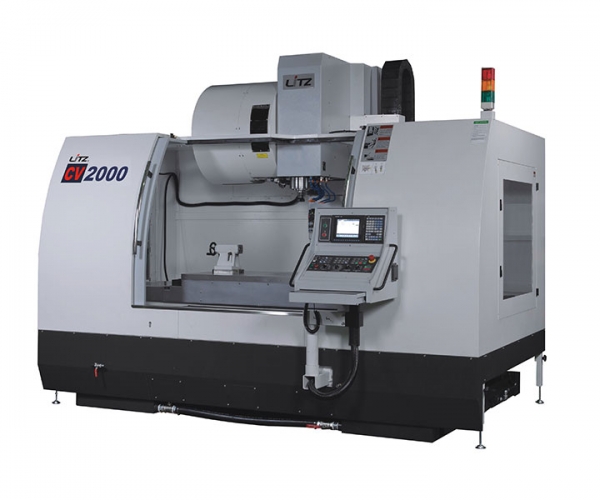

CV-2000
Travel For 3-Axes
X-Axis Travel
mm
2000
Y-Axis Travel
mm
900
Z-Axis Travel
mm
800
Spindle Nose To Workable Surface
mm
100-900
Spindle
Spindle Speed
rpm
6000
Automatic Tool Changing System
Number of Tools
one of a pair
24
Max. Tool Diameter
mm
125/225
Max. Tool Length
mm
350
Max. Tool Weight
kg
15
Tool Changing Method
Arm
Tool Specifications
BT-50
Motor
Spindle Motor (Continuous/30min. Rated)
kw (HP)
15/18.5 (20/25)
Motors On X/Y/Z-Axis
kw
4.5/4.5/4.5
Worktable
Worktable Area
mm
2100x850
Worktable Max. Load Capacity
kg
3000
T-Slot (Number X Width X Distance From The Center)
mm
7x18x100
Rapid Speed
X-Axis Rapid Speed
M/min
20
Y-Axis Rapid Speed
M/min
20
Z-Axis Rapid Speed
M/min
15
Cutting Feed Rate
mm/min
1-20000
Controller
Mitsubishi
M80
Miscellaneous
Machine Weight
kg
21000
Power Consumption
KVA
40
Coolant Tank Capacity
L
550
Compressed Air Source
kg/cm
2
6
