CNC Machining Center
Home
Products
CNC Machining Center
DV-Series
DV-800
Travel For 3-Axes
X-Axis Travel
mm
800
Y-Axis Travel
mm
500
Z-Axis Travel
mm
540
Spindle Nose To Workable Surface
mm
150~690
Spindle
Spindle Speed
rpm
10000
Automatic Tool Changing System
Number of Tools
one of a pair
24
Max. Tool Diameter
mm
80/125
Max. Tool Length
mm
270
Max. Tool Weight
kg
8
Tool Changing Method
Arm
Tool Specifications
BBT-40
Motor
Spindle Motor (Continuous/30min. Rated)
kw(HP)
7.5/11(10/15)
Motors On X/Y/Z-Axis
kw
2.0/2.0/3.5
Worktable
Worktable Area
mm
910X500
Worktable Max. Load Capacity
kg
500
T-Slot (Number X Width X Distance From The Center)
mm
5 x 18 x 100
Rapid Speed
X-Axis Rapid Speed
M/min
36
Y-Axis Rapid Speed
M/min
36
Z-Axis Rapid Speed
M/min
24
Cutting Feed Rate
mm/min
1-20000
Controller
Mitsubishi
M80

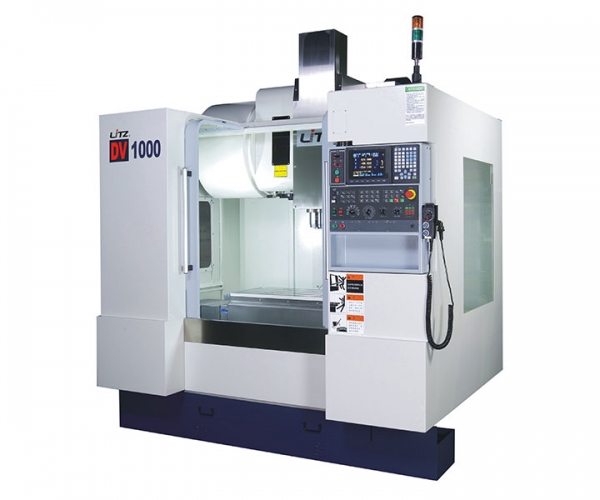

DV-1000
Travel For 3-Axes
X-Axis Travel
mm
1020
Y-Axis Travel
mm
560
Z-Axis Travel
mm
600
Spindle Nose To Workable Surface
mm
120~720
Spindle
Spindle Speed
rpm
10000
Automatic Tool Changing System
Number of Tools
one of a pair
24
Max. Tool Diameter
mm
80/125
Max. Tool Length
mm
300
Max. Tool Weight
kg
8
Tool Changing Method
Arm
Tool Specifications
BBT-40
Motor/th>
Spindle Motor (Continuous/30min. Rated)
kw(HP)
7.5/11(10/15)
Motors On X/Y/Z-Axis
kw
2.0/2.0/3.5
Worktable
Worktable Area
mm
1000X560
Worktable Max. Load Capacity
kg
750
T-Slot (Number X Width X Distance From The Center)
mm
5 x 18 x 100
Rapid Speed
X-Axis Rapid Speed
M/min
36
Y-Axis Rapid Speed
M/min
36
Z-Axis Rapid Speed
M/min
24
Cutting Feed Rate
mm/min
1-20000
Controller
Mitsubishi
M80
