CNC Machining Center
Home
Products
CNC Machining Center
LH-Series

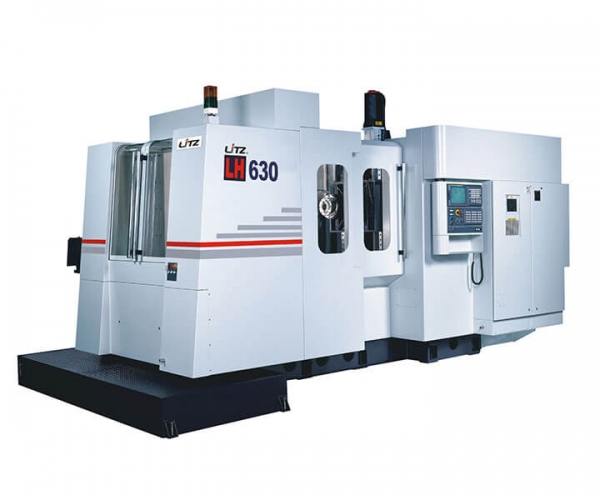

LH-630B
Travel
Travel, X/Y/Z
mm
1000/850/950
Spindle Center To Pallet Face
mm
100-950
Spindle Nose To Pallet Center
mm
150-1100
Pallet
Pallet Size
mm
630x630
Maximum Workpiece
mm
Ø 1000
Maximum Pallet Load
kg
1000
Maximum Workpiece Height
mm
1000
Pallet Surface Configuration
mm
24-M16 Pitch 125
Pallet Indexing
1°
Spindle
Spindle Max. Speed
RPM
6000
Low/Hight Gear Variation
RPM
-
Spindle Max. Torque( Standard )
N-m
165
Spindle Taper
7/24 Taper , NO.50
Spindle Bearing Id
mm
100
Spindle Transmission
Belt Type
Feed Rate
Max. X/Y/Z Rapid Speed
mm/min
32000
Cutting Feed Rate
mm/min
1-10000
Job Feed Rate
mm/min
1260
Automatic Tool Change (ATC)
Type Of Tool Shank
ISO 50 or BBT-50
Tool Capacity
one of a pair
40
Max. Tool Diameter (Without Adjacent Tool)
mm
120(230)
Max. Tool Length
mm
450
Max. Tool Weight
kg
20
ATC Changing Time ( T to T )
sec.
5
Tool Selection Method
fixed Address
Automatic Pallet Changer (APC)
Number of Pallets
one of a pair
2
Pallet Changing Type
Rotary Type
Time For APC
sec.
18
Controller System
FANUC
0i-MF
Motor
Spindle Motor, Power
KW
22/26
Spindle Motor
N.m
165
X/Y/Z/B Axis Motor
KW
7 / 7 / 7 / 3
Motor, Hydraulic System
KW
2.2
Motor, Coolant Pump System
KW
1.6
Power Supply
Power Requirement
KVA
42
Capacity Of Oil/Coolant Tank
Capacity, Hydraulic System
L
60
Capacity, Lubrication System
L
4
Capacity, Coolant System
L
800
Mechanical Specifications
Height
mm
3362
Floor Area
mm
5966x3570
Weight
kg
23000
LH-800B
Travel
Travel, X/Y/Z
mm
1300/1200/1200
Spindle Center To Pallet Face
mm
100-1300
Spindle Nose To Pallet Center
mm
200-1400
Pallet
Pallet Size
mm
800x800
Maximum Workpiece
mm
Ø 1300
Maximum Pallet Load
kg
2000
Maximum Workpiece Height
mm
1300
Pallet Surface Configuration
mm
24-M16 Pitch 160
Pallet Indexing
1°
Spindle
Spindle Max. Speed
RPM
6000
Low/Hight Gear Variation
RPM
1500
Spindle Max. Torque ( Standard )
N-m
660
Spindle Taper
7/24 Taper , NO.50
Spindle Bearing Id
mm
100
Spindle Transmission
ZF Gear Box + Belt Transmission
Feed Rate
Max. X/Y/Z Rapid Speed
mm/min
32000
Cutting Feed Rate
mm/min
1-10000
Job Feed Rate
mm/min
1260
Automatic Tool Change (ATC)
Type Of Tool Shank
ISO 50 or BBT-50
Tool Capacity
one of a pair
60
Max. Tool Diameter (Without Adjacent Tool)
mm
125(250)
Max. Tool Length
mm
600
Max. Tool Weight
kg
30
ATC Changing Time ( T to T )
sec.
8
Tool Selection Method
fixed Address
Automatic Pallet Changer (APC)
Number of Pallets
one of a pair
2
Pallet Changing Type
Rotary Type
Time For Apc
sec.
18
Controller System
FANUC
0i-MF
Motor
Spindle Motor, Power
KW
22/26
Spindle Moto
N.m
165
X/Y/Z/B Axis Motor
KW
7 / 6 / 7 / 3
Motor, Hydraulic System
KW
3.7
Motor, Coolant Pump System
KW
1.6
Power Supply
Power Requirement
KVA
42
Capacity Of Oil/Coolant Tank
Capacity, Hydraulic System
L
60
Capacity, Lubrication System
L
4
Capacity, Coolant System
L
850
Mechanical Specifications
Height
mm
3948
Floor Area
mm
6991x4326
Weight
kg
25000
